Homemade alarm device simple

This article will continue to look at "homemade" a simple warning device for the purpose of signaling your self-identity being compromised or . "troll" friends and relatives also well suited!

Prepare

  1. 1 Square battery (used in wireless microphones).
  2. 1 Battery contact head.
  3. 1 Small capacity warning horn device.
  4. 1 Number of long zinc bolts and several rounds.
  5. 1 Cover of a ballpoint pen.
  6. Silicone glue, scissors, lead groins, small wire and matchsticks.

Perform

Picture 1 of Homemade alarm device simple
Attach the battery and battery connection back.Then apply a layer of silicone glue to the wide plane of the battery pack.

Picture 2 of Homemade alarm device simple
Put the mini siren on.

Picture 3 of Homemade alarm device simple
Then tell the horn's power cord with the power cord of the battery connector.

Picture 4 of Homemade alarm device simple
And use a lead torch to bond two contact ends of the wire.

Picture 5 of Homemade alarm device simple
Try connecting the other end of the 2 devices to see if the buzzer is working.Do not use solder at the end of this connector.

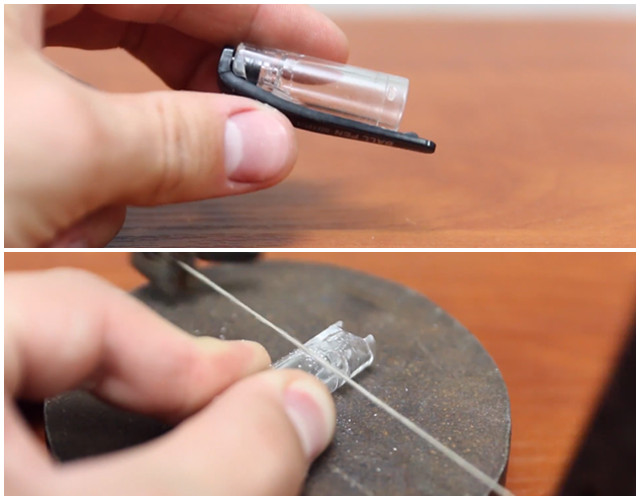

Picture 6 of Homemade alarm device simple
Now remove the cap of the ballpoint pen and remove the top of the cap.Then use a saw to create a cross-section but not completely cut off.

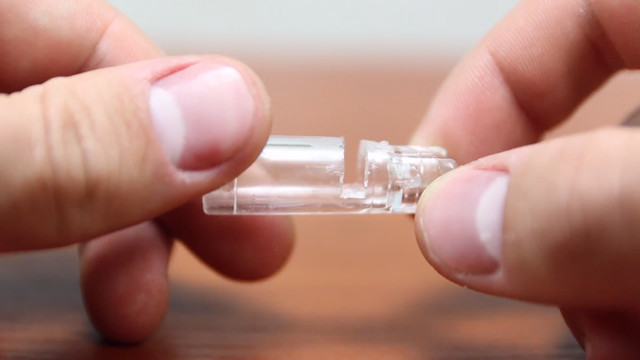

Picture 7 of Homemade alarm device simple
This is the product after creating a slot by sawing.

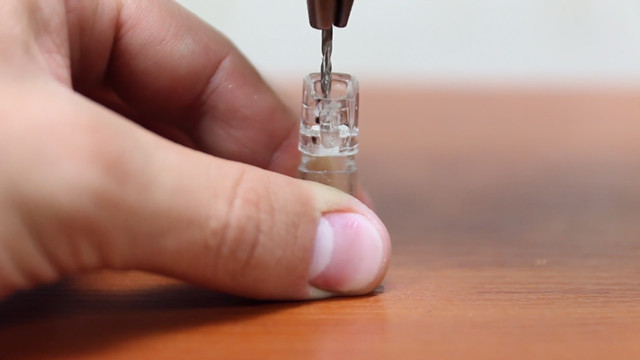

Picture 8 of Homemade alarm device simple
Next use a drill to drop a small hole inside the pen cap.

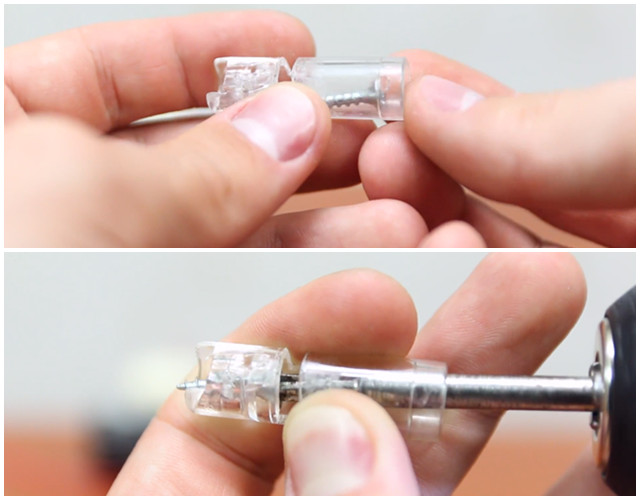

Picture 9 of Homemade alarm device simple
Put a screw in and turn it so that the brain tip pierces the top of the ballpoint cap.

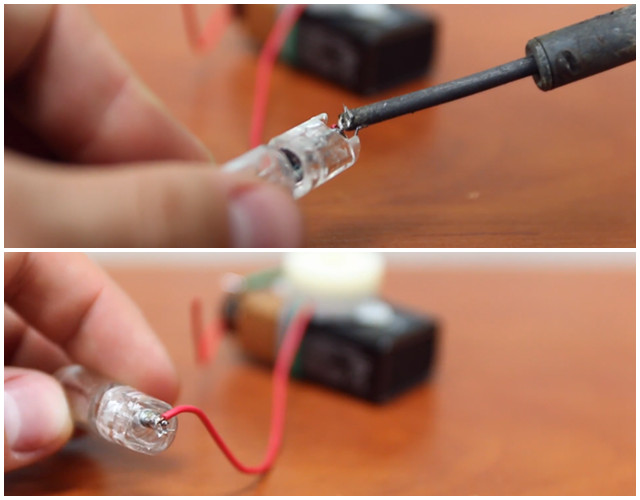

Picture 10 of Homemade alarm device simple
Now take the other end of the mini siren and solder it to the end of the screw that was caught in the ballpoint cap.

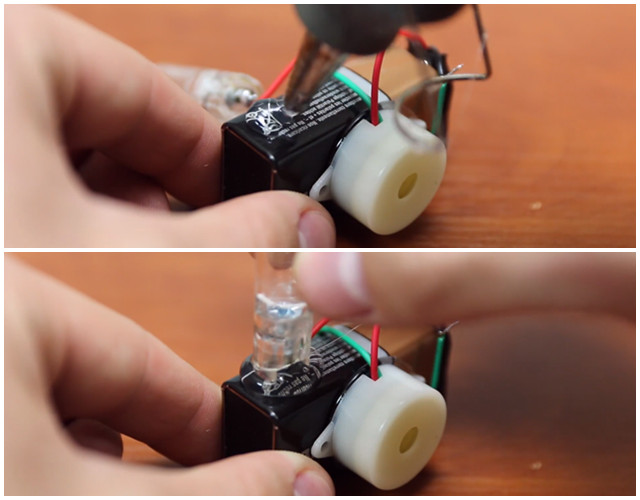

Picture 11 of Homemade alarm device simple
Now apply a layer of glue to one side of the battery and place the tip of the ballpoint cap that has soldered the wire.

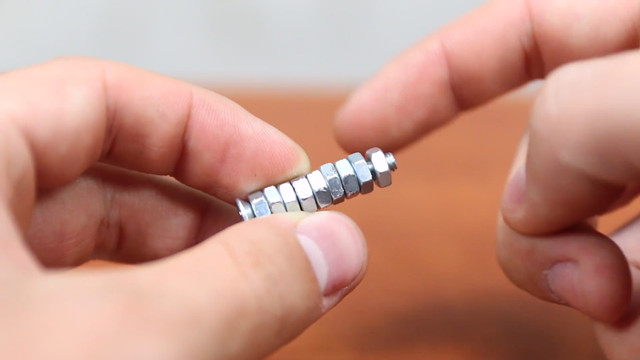

Picture 12 of Homemade alarm device simple
Take one long bolt and bring it into the number of turns so that it covers the bolt.

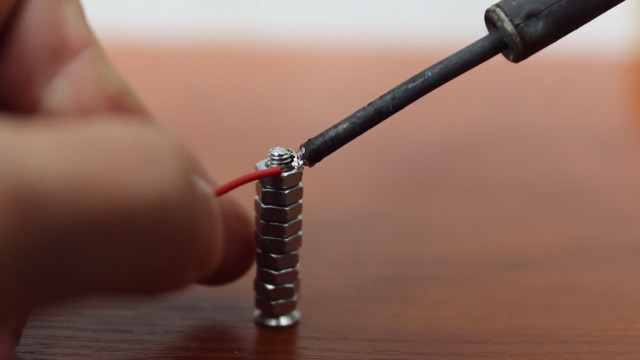

Picture 13 of Homemade alarm device simple
Carry out the welding of the remaining wire at the end of the bolt.You can also use another piece of wire to increase the length of the wires if necessary.

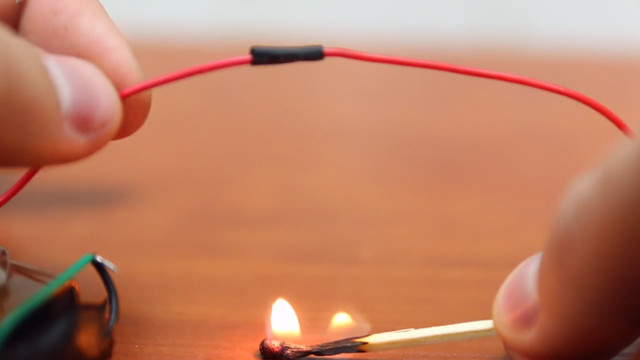

Picture 14 of Homemade alarm device simple
The next job you need to do is to use a flexible electrical wire to cover the connections between the two ends of the wire.

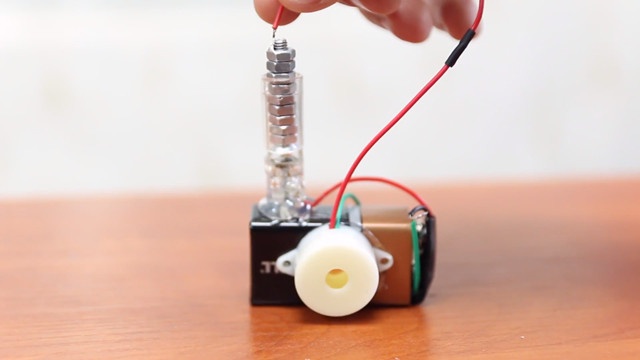

Picture 15 of Homemade alarm device simple
When you're done, drop the long bolts on the inside of the ballpoint cap.Then the circuits will connect to each other and the siren will sound.

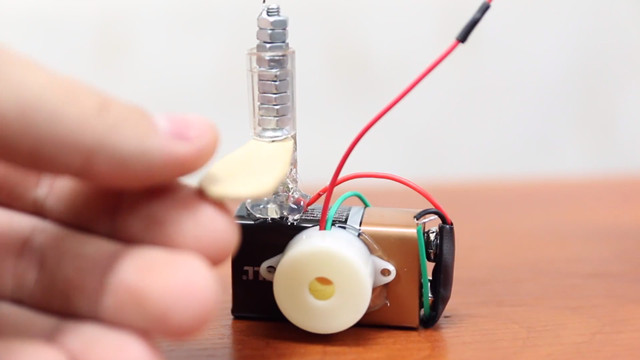

Picture 16 of Homemade alarm device simple
To disconnect the device's transmission circuit, use a piece of wood or cardboard and place it in the freeway at the ballpoint cap that we created in the first steps.

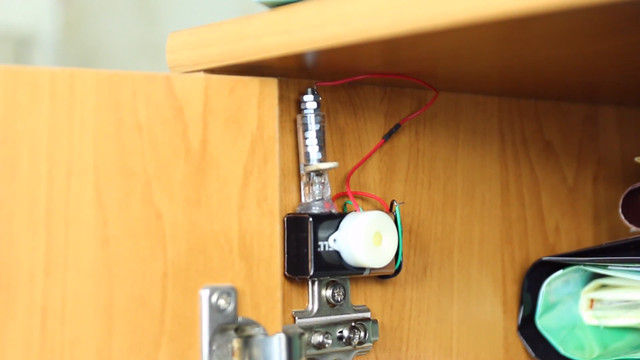

Picture 17 of Homemade alarm device simple
Next, put your "device" on a desk or position you want.Then use silicone glue to fix it.

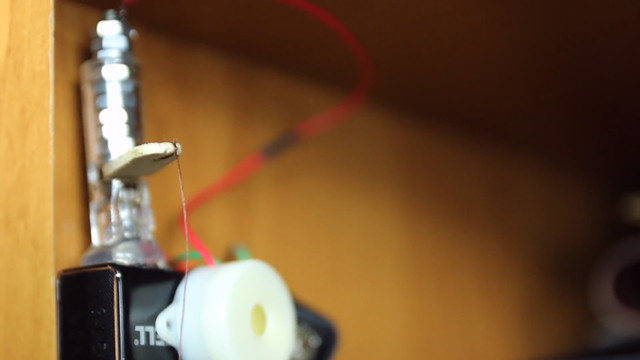

Picture 18 of Homemade alarm device simple
Tie a small thread to the piece of cardboard.Then keep the distance so that when opening the door or the door is long enough, fear only to stretch and pull the piece of cardboard away from your alarm device.

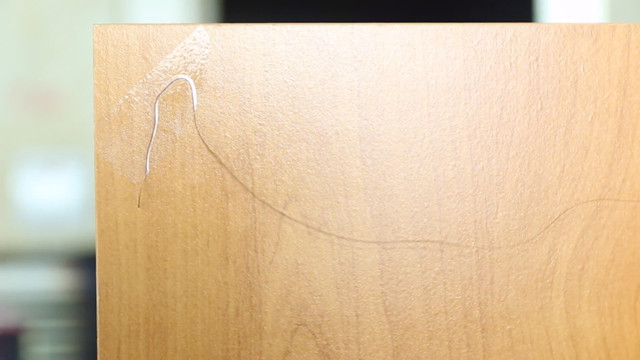

Picture 19 of Homemade alarm device simple
Then attach the remaining wire end to the edge of the cabinet.

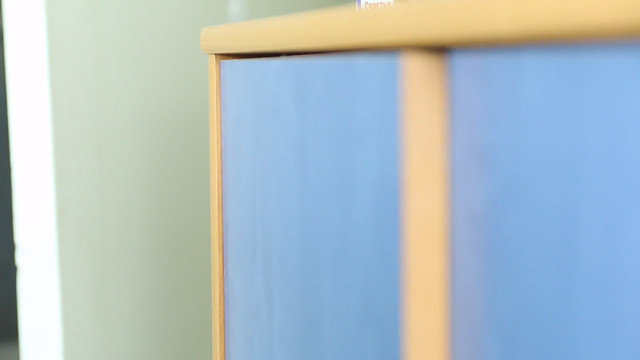

Picture 20 of Homemade alarm device simple
Now you just need to gently defuse the cabinet or door and wait for someone to "stick" your card!
