How to build a mini generator is extremely simple.

A generator is a device that uses alternating magnetic fields to produce electricity. While full-scale models can be complex and expensive, you can build a simple, easy-to-use generator.

Instructions for building a very simple mini generator.

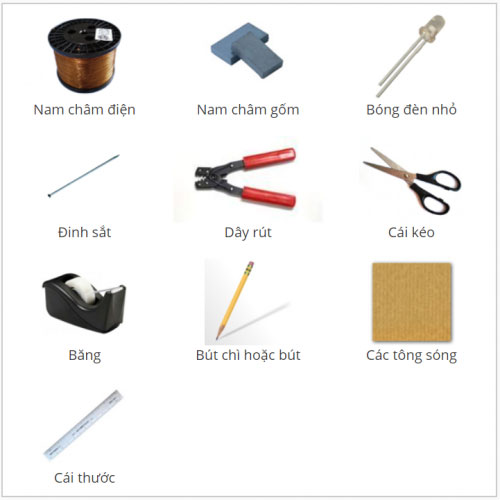

Materials for making a mini generator

To build a simple mini generator, you will need the following materials:

1. Electromagnet: Prepare a 6m long, 0.255mm² thin, insulated copper wire.
2. Ceramic magnets: two or four ceramic magnet bars, no more than 4cm wide and 1cm thick.
3. small light bulb
4. Iron nails: thin, and at least 8cm long.
5. Wire stripping tool
6. Drag
7. Electrical insulation tape
8. Pencil
9. Cardboard
10. Ruler

These are all simple ingredients that are easy to find and buy.

How to build a mini generator using magnets

All you need to do is create a frame to hold the wire, a magnet, wrap the wire around it, and then connect it to the electrical device.

1. Construct the wire frame.

This is the first stage of the mini generator manufacturing process. The wire frame construction will consist of four steps.

Step 1: Cut the cardboard.

Cardboard will serve as the support frame. Use a ruler to measure and cut a strip of cardboard into a rectangle measuring 8cm in length and 30.4cm in width. This single piece will then be folded to create the frame.

Step 2: Mark

Use a ruler to measure along the length of the cardboard. Mark four points along the width of the cardboard. The first point is at 8cm; the second at 11.5cm; the third at 19.5cm; and the last point is at 22.7cm.

This marking will create segments of 8cm; 3.5cm; 8cm; 3.2cm; and 7.7cm. Keep these segments intact and do not cut them.

This marking can be flexible as long as the magnets can move freely inside the box.

How to build a mini generator

Step 3: Fold the cardboard.

Fold the cardboard along each marked line to form a rectangular frame. This frame will contain the components of the electric motor.

Step 4: Create a metal shaft through the support frame.

Insert a nail through the center of the cardboard frame you just created. Make sure you insert the nail through all three folded pieces of cardboard. Now you can attach a metal shaft or use this nail as the electric motor shaft.

2. Create the circuit

This is a crucial step in the entire process of building a mini generator.

Step 1: Wrap the copper wire.

Wrap the electrical wire around the rectangular wire frame approximately 100 times on each side (200 times in total). Make sure to wrap it around the closed sides of the box, not the open sides.

Note: Do not wrap too tightly as this may cause the cardboard to shift.

Step 2: Connect the cable to the electronic device.

Connect the two ends of the wire to the LED or connect the test leads to a voltmeter/multimeter. Remember, the voltage generated by this homemade mini generator is very low, so larger devices will not be powered.

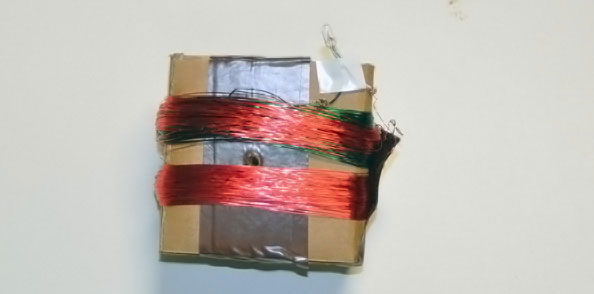

Results after step 2

3. Place the magnet

Step 1: Attach the magnets to the shaft.

To build this mini generator, we use high-strength hot melt glue to attach four ceramic magnets to the shaft. Attach them so that two magnets face north towards the coil, and the other two face south. Only attach the magnets to the shaft after it has been assembled into the frame. Allow the glue to dry for a few minutes.

Step 2: Rotate the shaft with your fingers.

Make sure the ends of the magnets are touching the inside of the frame. The magnets should rotate freely, but the closer they are to the sides of the frame, the better. This increases the 'excited' activity of the magnetic field that the magnets create.

Step 3: Rotate the shaft as fast as possible.

Use your fingertips as a pivot point. This will generate enough voltage to light up a 1.5V light bulb.

Electricity output can be improved by connecting it to an electric fan to rotate the wheel.

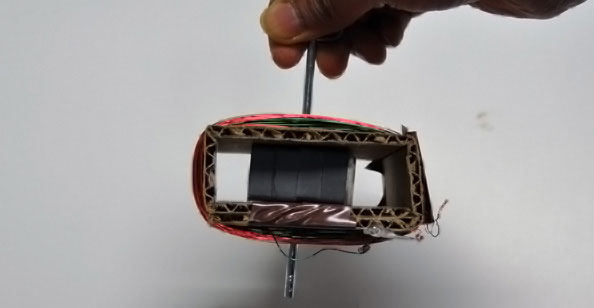

Finished mini generator

Above is a complete guide on how to build a mini generator. Readers can also build mini generators using various materials other than magnets, such as water, wind, and solar power. Good luck!
